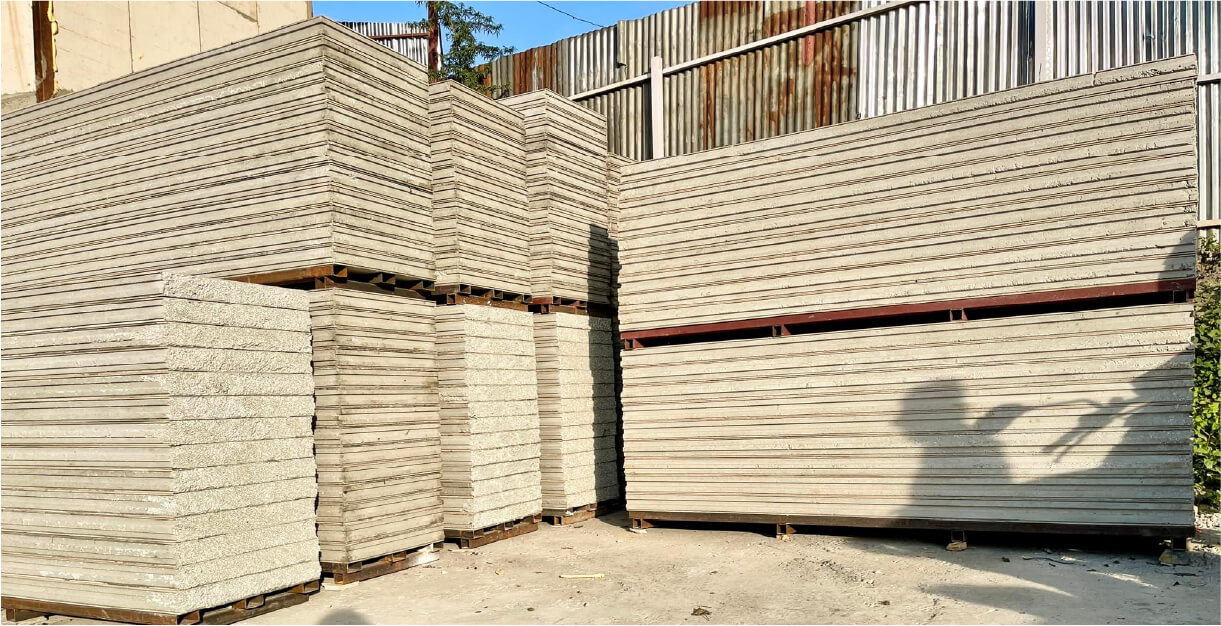

What is EPS Sandwich Panel?

EPS Sandwich Panel is a lightweight, energy-saving wall panel made with a core of EPS (Expanded Polystyrene) foam mixed with cement, and surface layers of calcium silicate board or cement fiberboard. Manufactured through a one-time compound process, these panels provide excellent thermal insulation, fire resistance, and soundproofing.

They are widely used for interior partitions and exterior walls in high-rise buildings, offices, condos, hotels, warehouses, duplexes, hospitals, schools, villas, and temporary shelters.

Product Details

Product Name	EPS Sandwich Panels
Surface Layers	Double-sided Calcium Silicate Board
Core Material	EPS (Expanded Polystyrene) Cement Mixture
Joining Method	Tongue & Groove
Available Sizes	2400/2700/3000mm x 610mm Thickness: 50/75/100mm
Packaging	EPE film wrapped, wedge-protected on pallets
MOQ	One 20′ GP container
Payment Terms	T/T, L/C, Western Union, etc.
FOB Ports	Wuhan, Shanghai
Lead Time	7–15 days after payment confirmation



EPS Sandwich Panels Features

Lightweight Density: 650kg/m³ – reduces structural load	Fast Construction Up to 40m² per day per worker – easy to cut, carry, and install	Cost Saving Total construction cost reduced by approx. 30%
Fire Resistance Fireproof for up to 4 hours	Sound Insulation STC rating: 42 dB – excellent acoustic performance	Thermal Insulation Thermal conductivity: 0.17 W/(m²·K)
Moisture Resistance Low water absorption for damp areas	Anti-Seismic Durable and flexible for earthquake-prone regions	Space Efficient Saves up to 5% room space compared to brick walls
Eco-Friendly No asbestos, non-toxic materials	No Plaster Required Smooth surface ready for paint, tiles, or wallpaper	Heavy Anchorage Supports up to 150kg point load for shelves and fixtures



Applications

• Interior Partition Walls
• Exterior Facade Walls
• Office Dividers
• Hospital & School Partitions
• Commercial and Industrial Projects
• Temporary and Permanent Constructions

Installation Guide

1. Clean the installation area.
2. Mark the wall layout on the floor.
3. Clean surfaces of panels and the structure.
4. Apply cement adhesive mortar on both sides of the panel and the base structure.
5. Place the panel with wedge support, align vertically and horizontally.
6. Fix the panel with L-shaped rebar at the base.
7. Cut panels to fit any remaining spaces and install them.
8. Repeat fixing as required for small pieces.
9. Groove for wires and plumbing; fill with cement mortar.
10. Finish with paint, wallpaper, tiles, or skim coat.
